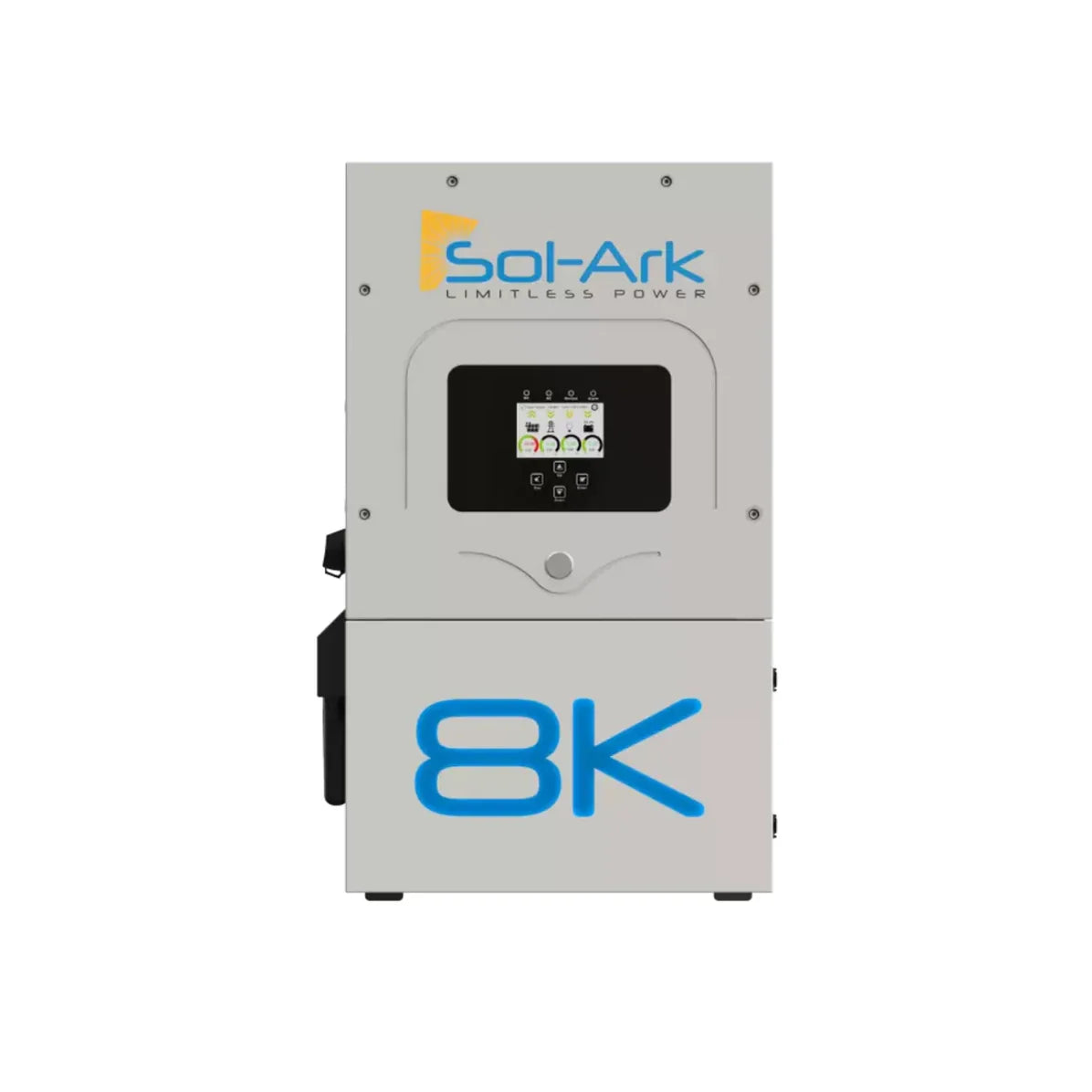

Sol-Ark 8K-2P Hybrid Solar Inverter

Experience the power and convenience of the Sol-Ark 8k Hybrid Solar Inverter, a revolutionary advancement in the solar energy sector. Crafted with meticulous attention to detail, this state-of-the-art inverter transforms how you harness and utilize solar power. With its exceptional features and unmatched performance, the Sol-Ark 8k Hybrid Inverter promises to redefine your solar energy journey.

Built-in Efficiency for Top Notch Performance

Unlike other so called all-in-one systems, the Sol-Ark 8k Inverter lives up to its name. It eliminates the need for additional breakers, fuses, combiner boxes, and rapid shutdown equipment often overlooked by competitors. This inverter includes all these crucial components, ensuring a straightforward installation that complies with codes. Simply connect your solar panels, and start harnessing the limitless power of the sun effortlessly.

Flexible Battery Integration for Future-Proof Solutions

For those planning ahead with battery integration in mind, the Sol-Ark 8K Solar Inverter is ideal. This outstanding inverter functions seamlessly even without batteries, meeting your immediate solar energy requirements. When you’re ready to expand your energy storage, the possibilities are limitless. Whether you favor FLA, AGM, or cutting-edge Lithium technology, our inverter accommodates a broad array of battery options. It ensures smooth closed-loop communication with top batteries such as SOK, EG4, ENDURR, enhancing your energy system’s efficiency and performance.

Sol-Ark 8k Inverter Features

1. True All-in-One Design: Simplify installation by eliminating the need for extra equipment.
2. 63A Feedthrough for Critical Loads: Safeguard your essential appliances and ensure uninterrupted power supply when it matters most.
3. Expandable System Through Parallel Stacking: Increase system capacity effortlessly with the ability to stack up to 8 units.
4. Durable Outdoor NEMA 3R Enclosure: Designed to endure severe weather conditions, ensuring robust performance and longevity.
5. LiFePO4 Communication: Seamlessly integrates with leading battery technologies like LiFePO4 for enhanced performance & efficiency.
6. Versatile AC/DC Solar Compatibility: Supports both AC and DC solar systems, offering flexibility for various installation types.
7. Integrated Rapid Shutdown: Ensures compliance with safety standards and swift shutdown when required.
8. Remote Monitoring Capabilities: Monitor system performance remotely with intuitive, accessible monitoring features.
9. UL Listed and California Certified: The Sol Ark 8k Inverter meets rigorous safety and performance criteria, including UL certification for installations in California.



General
Dimensions (H x W x D)	28.0″ x 17.375″ x 9.37″
Weight	75 lbs
Ensclosure	NEMA type 1 (Indoor Use)
Ambient Temperature (4 speed variable fans)	-25 to 55c, >45C derating
Display	Color touch screen
Wifi Communication (monitoring or SW updates)	integrated
Snap on sensors for limited selling to Household	included
Standard Warranty	5 years
Optional Extended Warranty	10 years



Solar
Max allowed PV power	11000W
Max PV Power per MPPT	6000W
Max DC voltage	500V
MPPT voltage range	150-425V
Starting voltage	175V
Number of MPPT	2
Solar strings per MPPT	2
Max DC current per MPPT	18A (self limiting)
Max AC Coupled Input (Micro/String Inverters	7,000W
Max Combined Solar Input	13,000W



AC Output
Connections	120/240 split phase
Continuous AC power on Solar or Battery	9000W 37.5A L-L (240V) 40A L-N (120V)
Surge AC power 5sec	20,000VA L-L (240V) 10,000VA L-N (120V)
Frequency	60/50Hz
Continuous AC power with Grid or Generator	12000W 50A L-L (240V) 6000W 50A L-N (120V)
CEC Efficiency	96.5% (Peak 97.5%)
Idle Consumption typical – no load	60W
Sell back power modes	Limited to Household or Full Grid-Tied
Design (DC to AC)	Transformerless DC
Response Time (Grid-Tied to Off-Grid)	4ms
Power Factor	+-0.9 – 1.0



Protection & Certifications
Electronics certified safety by SGS labs to NEC & UL Specs – NEC 690.4B & NEC 705.4/6	Yes
Grid Sell Back – UL1741 – 2010/2018, IEEE1547z-2003/2014, FCC classB, UL1741SA, CA Rule 21, HECO Rule 14H	Yes
PV DC disconnect switch – NEC 240.15	integrated
Ground Fault Detection – NEC 690.5	integrated
PV rapid shutdown control – NEC 690.12	integrated
PV Arc Fault detection – NEC 690.11/UL1699B	integrated
PV input lightning protection	integrated
AC input/output 50XA breakers	integrated
Battery breaker / disconnect	integrated
User wiring enclosure 4/3/4″ & 1″ knock-outs	integrated
Solar Flare/EMP Hardened to 2015 MIL-STD-461G (Independently testing June 2018)	optional



Battery (optional)
Type	Lead-Acid or Li-Ion
Nominal DC Input	48V
Capacity	90 – 2000Ah
Voltage Range	42.0 – 59.0V
Continuous Battery charging output	190A
Charging curve	3-stage w/ equalization
Grid to Batter Charging Efficiency	96.0%
External temperature sensor	included
Current shunt for accurate % SOC	integrates
External Generator Start based on voltage of % SOC	integrated
Communications to Lithium battery	CanBus & RS485
