Product Details

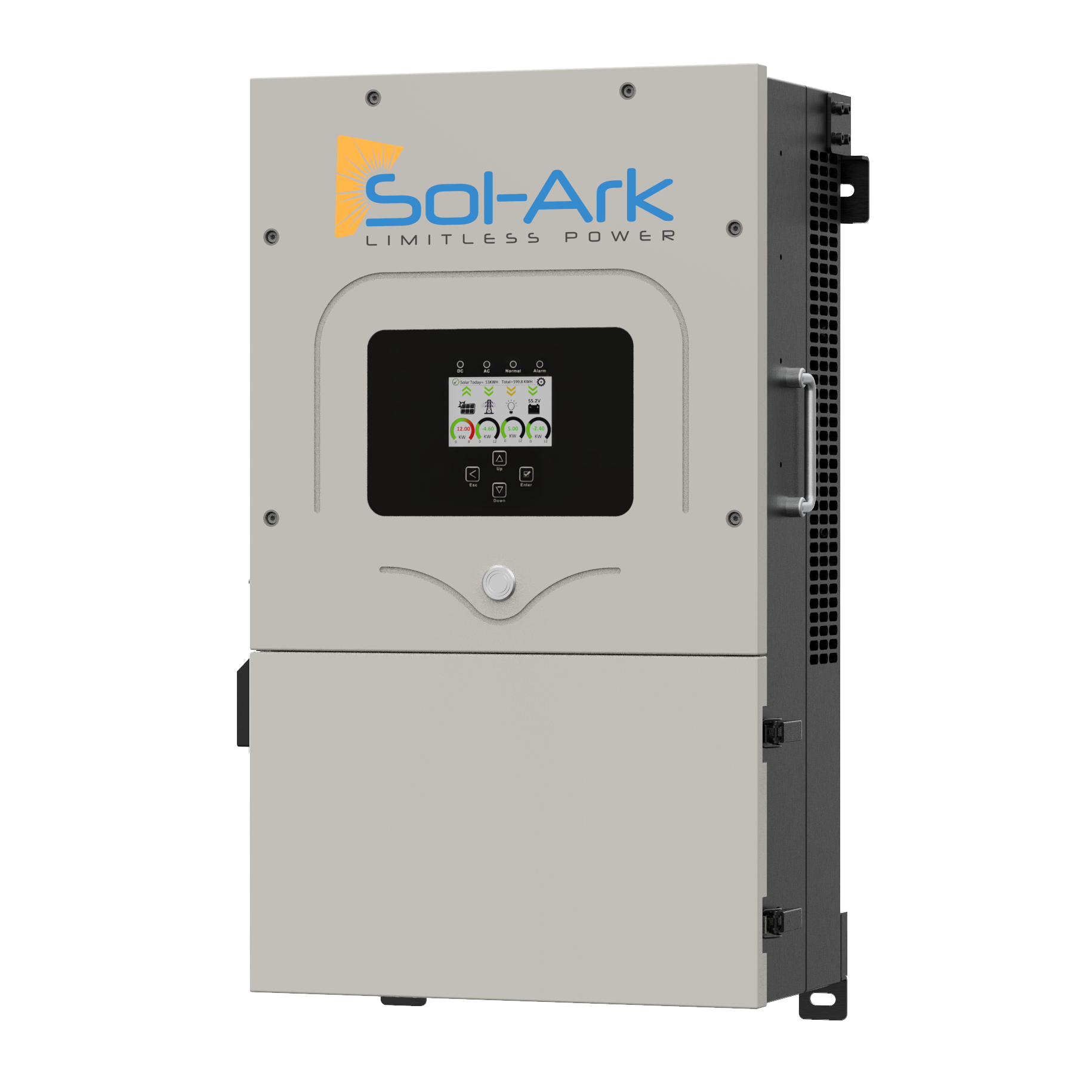

Sol-Ark hybrid inverters simplify installation, providing everything you need for your solar system to run smoothly. Thanks to Sol-Ark’s remote access features and app, you’ll always be in the know when it comes to quick repairs or system adjustments, no matter where you are. Plus, Sol-Ark’s award-winning iron-clad warranty and 7-days-a-week engineering support is ready to assist you with all your needs, and comes free with Sol-Ark inverters.

Features

• Supports simultaneous AC and DC coupling
• 200 Amp Grid or Generator Passthrough
• 4ms UPS – No glitch transfer capability
• 3 MPPTs to allow for different solar panel orientations
• Integrated Arc Fault and Rapid Shutdown
• Remote Access
• Compatible with any 48 volt battery system
• Integrated 250A Battery Breaker/Disconnect

Is This Inverter Right for Me?

If you’re looking for independence from the utility and the freedom to add a battery to your system, this inverter is a great option. Unlike other inverter brands, Sol-Ark is flexible and battery agnostic.

Warranty Information

• 5-year warranty

Warranty: Download

Specifications

General Information:

Manufacturer	Sol-Ark
Model Number	15K-2P
Certifications	UL1741 – 2010/2018, IEEE 1547a – 2003/2014, FCC 15 Class B, UL1741SA, CA Rule 21, HECO Rule 14H

Mechanical Specifications:

Dimensions	31.8” x 18.3” x 10.9”
Weight	135 lbs

Electrical Specifications:

Nominal AC Output	15,000 Watts
Max Output Current to the Grid	62.5 Amps
Max Output Current as Back-up	50 Amps
Battery Input Voltage	Nominal 48 Volts
Max Efficiency	97.5%
Max PV Power at STC	19,500 Watts
Max DC Voltage	500 Volts
Start Voltage	125
MPPT Operating Voltage	125 – 425 Volts
Max Short Circuit Current per MPPT	2 Strings
Max Operating Current per MPPT	26 Amps (Self Limiting)

Datasheet: Download file

Installation Guide: Download file
