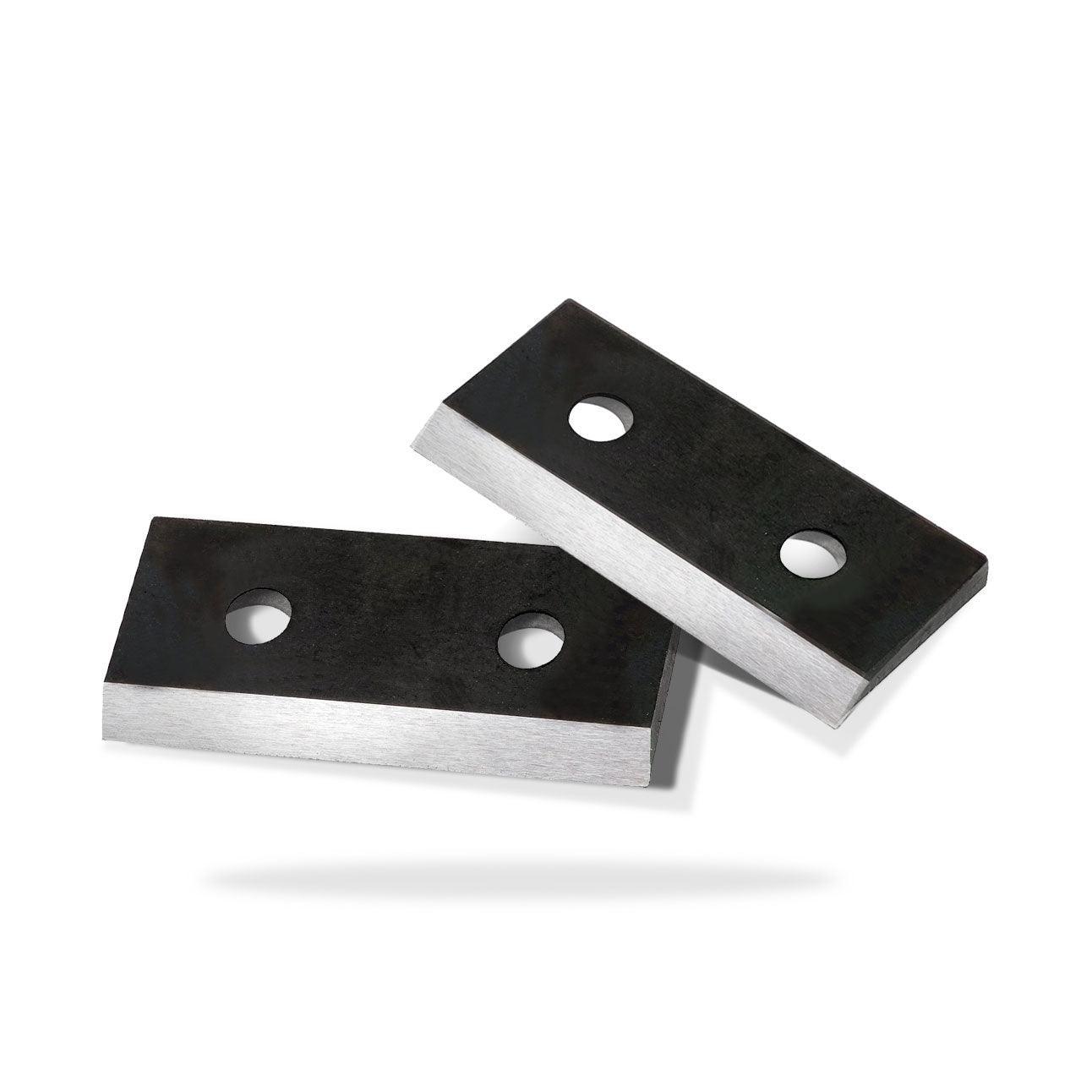

These Chipper blades are precision manufactured to be mounted with (2) M8x25 bolts holding each blade into place (*Note: the bolts are not flat but slanted at 10.9 degrees). We chose a very strong & long-lasting CR12Mov Steel material for our blades, providing excellent longevity of use. Our blade edges sit at 39.5 degrees, for optimal chipping capability.
-
Dimension of 3″L (76.5mm) x 1.3″W (34mm) (or 1-11/32) x 0.19″H (5mm) (13/64).
-
Center-to-Center length of 1.5″
-
Inner bolt diameter of 9mm
-
The outer bolt edge is 18mm.
-
Mounted with (2) M8x25 bolts holding each blade into place (*Note: the bolts are not flat but slanted at 10.9 degrees).
