Welcome to the forefront of energy storage innovation with the BigBattery 48V ETHOS systems. These 5.12kWh battery modules (15.3kWh – 3 module) form the backbone of adaptable power solutions suitable for a wide range of applications, including grid-tied residences, solar installations, remote off-grid locations, and commercial establishments across the country. Featuring Tier 1 LiFePO4 cells, renowned for their safety and durability, and offering scalability up to 80kWh per Control Box, the ETHOS system sets a new standard for dependable energy storage solutions.
- Scalable Power: 5.12kWh modules, expandable up to 80kWh per ETHOS Control Box.
- Safety First: Tier 1 LiFePO4 cells and built-in fire-extinguishing modules ensure maximum safety.
- Smart Monitoring: Advanced BMS technology provides real-time monitoring of voltage, current, and temperature.
- Reliable Connectivity: UL-certified connectors ensure secure and reliable power connections.
- Durable Design: IP65-rated casing protects against the elements for long-lasting reliability.
- Versatile Applications: Ideal for emergency backup or as part of a solar energy system.
Designed for:
- Residential Power Systems
- Home Solar Systems
- UL-Certified ESS
- Cabins & Tiny Homes
- Family Homes & Mansions
- Off-Grid Homesteads
- Emergency Power
- Whole Home Backup
- Lead Acid Replacement

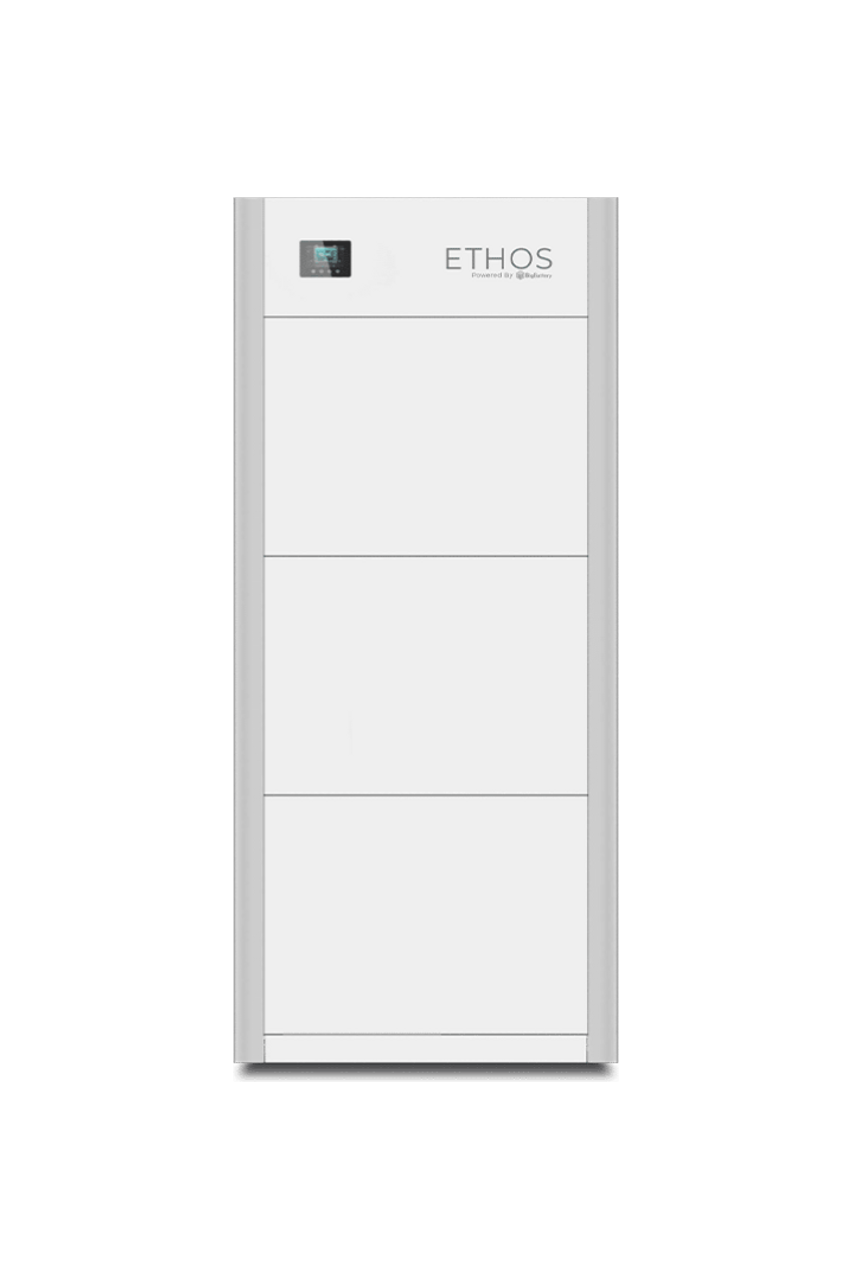

BigBattery 48V ETHOS 15.3KWH (3 Module) Includes:
- 1 √ó ETHOS Control Box
- 3 √ó 48V ETHOS 5.12kWh Stackable Battery Module
- 1 √ó 15kWh Ethos Controller to Battery Power Cable 4ft (1220mm)
3 Stack Specs:
|  SKU: |  BNDL-B0007 |
|  System Voltage: |  48V |
|  Nominal Voltage: |  51.2V |
|  Chemistry: |  LiFePO4 |
|  kWh Capacity: |  15.36kWh |
|  Ah Capacity: |  300Ah |
|  Charging Voltage Range: |  55.6 Р57V |
|  Max Charge Voltage: |  57V |
|  Operating Voltage Range: |  48 – 57V |
|  Suggested Low Voltage Cutoff: |  48 – 50.8V |
|  Cell Configuration: |  16S 3P |
|  Max Continuous Discharge Current: |  250A |
|  Max Continuous Power: |  12800W |
|  Max Discharge Peak Current: |  300A (Max 5 seconds) |
|  Max Charge Current: |  200A |
|  Charge Temperature Range: |  32°F Р113°F (0°C Р45°C) |
|  Discharge Temperature Range: |  -4°F Р140°F (-20°C Р60°C) |
|  Optimal Discharge Temperature Range: |  59°F Р95°F (15°C Р35°C) |
|  Storage Temperature Range (SoC >50%): |  -4°F Р113°F (-20°C Р45°C) (Max 6 months) |
|  Depth: |  6.7 in (170 mm) |
|  Width: |  26.5 in (674 mm) |
|  Height: |  59.8 in (1520 mm) |
|  Max Connections: |  Up to (16) parallel connections per control box |
|  Protection Rating: |  IP65 |
|  Communications: |  CANBus / RS485 |
|  Certifications: |  UL9540, UL9540a, UL1973, & UN38.3 |
