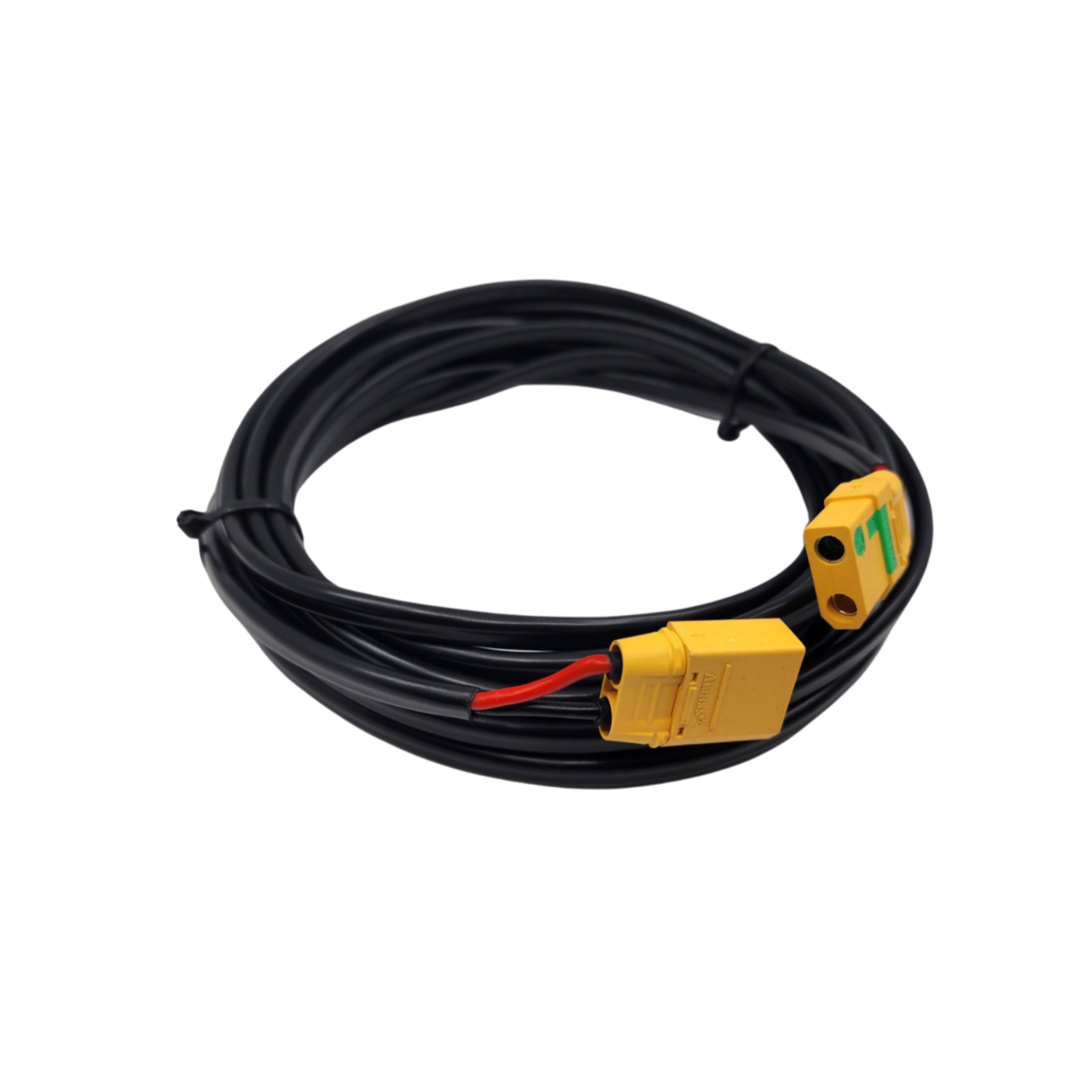

5 Metre XT90 4mm DC Cable Extension Cable (Used to extend Bluetti Solar Panels) Sale Online Shop

Are you looking to buy a 5 Metre XT90 4mm DC Cable Extension Cable (Used to extend Bluetti Solar Panels) in Australia?

This is a custom-made high-quality Twin Core 4mm extension cable with XT90 Connectors.

PLEASE MAKE SURE THAT YOUR BLUETTI CABLE input ends in XT90 – We know ACMAX/AC200P/EB200P has this but for other models you may need to check.

Bluetti comes with an XT90 to MC4 to connect your solar panels to your Bluetti however sometimes you need an extension cable, this is the solution!

We sell this cable in 3.5M, 5M, 10M, and 15M – search on the site for the other sizes.

Made in Australia

Specifications

• 4mm twin sheath automotive cable
• Oxygen-free copper core conductor
• Low eccentricity
• Reinforced PVC material
• SAA-certified
• Can normally work up to 450V AC/DC
• Conductor: Oxygen-free plain copper wire to AS/NZ 1125
• Insulation: V90 PVC to AS/NZ 3808
• Sheath: 5V90 PVC to AS/NZ 3808
• Amp rating: 22
• No. of cores: 2
• Industry Equiv.: 4mm
• Strand no. diameter: 23/0.32mm
• Nominal area: 1.84mm2
• Nominal O.D.: 3.8mm x 6.3mm
• Colour: Black sheathing
• Conductor resistance: <10.1Ω/Km(20℃)
• Dielectric strength(kV/sec AC): 2.5/60
• Unaged acceptable tensile strength: ≥ 12.5Mpa
• Unaged acceptable ultimate elongation: ≥130%
